3rd Party Boards
Consider buying a commercial off-the-shelf board with Jariet’s ICs already integrated. These are available in commonly used form factors.
Annapolis Micro Systems

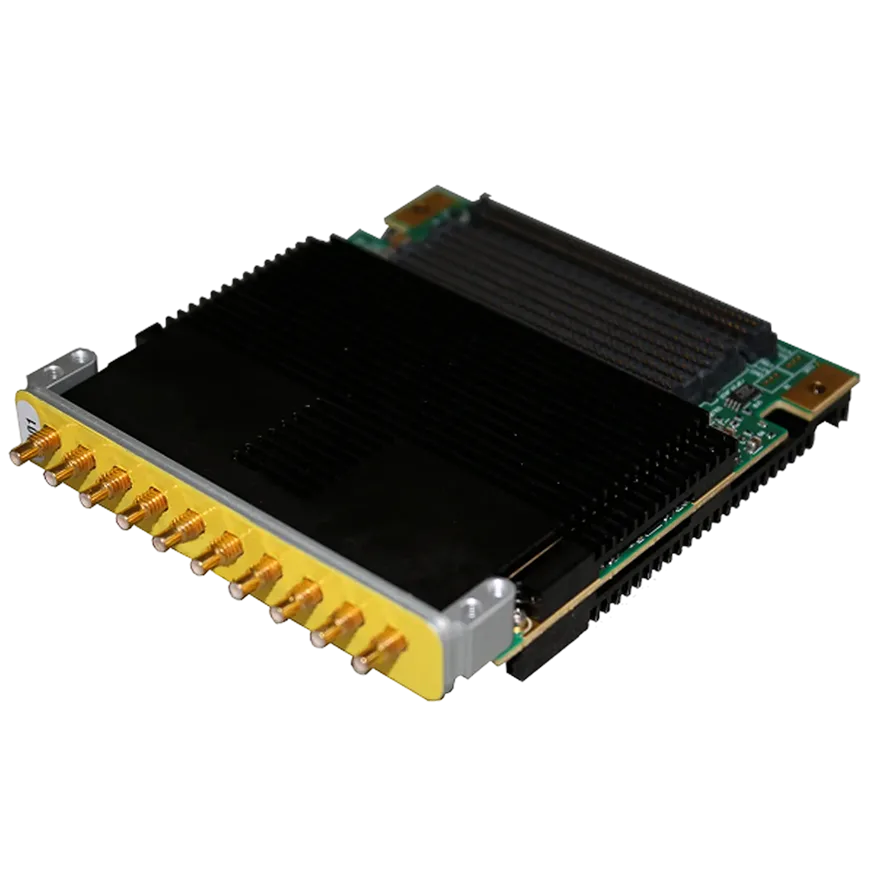

WILD FMC+ DME1 ADC & DAC – WWDME1
The WILD FMC+ DME1 ADC & DAC is the industry’s first COTS product to feature Jariet’s ELECTRA 64.0/61.4 GS/s, 10-bit ADC and DAC Direct RF capability.
The SOSA-aligned DME1 integrates a Jariet Technologies transceiver and is targeted at demanding applications requiring direct sampling frequency coverage anywhere from 0.1 to 36 GHz (VHF through Ka-band), and/or wide instantaneous bandwidths.
Annapolis Micro Systems

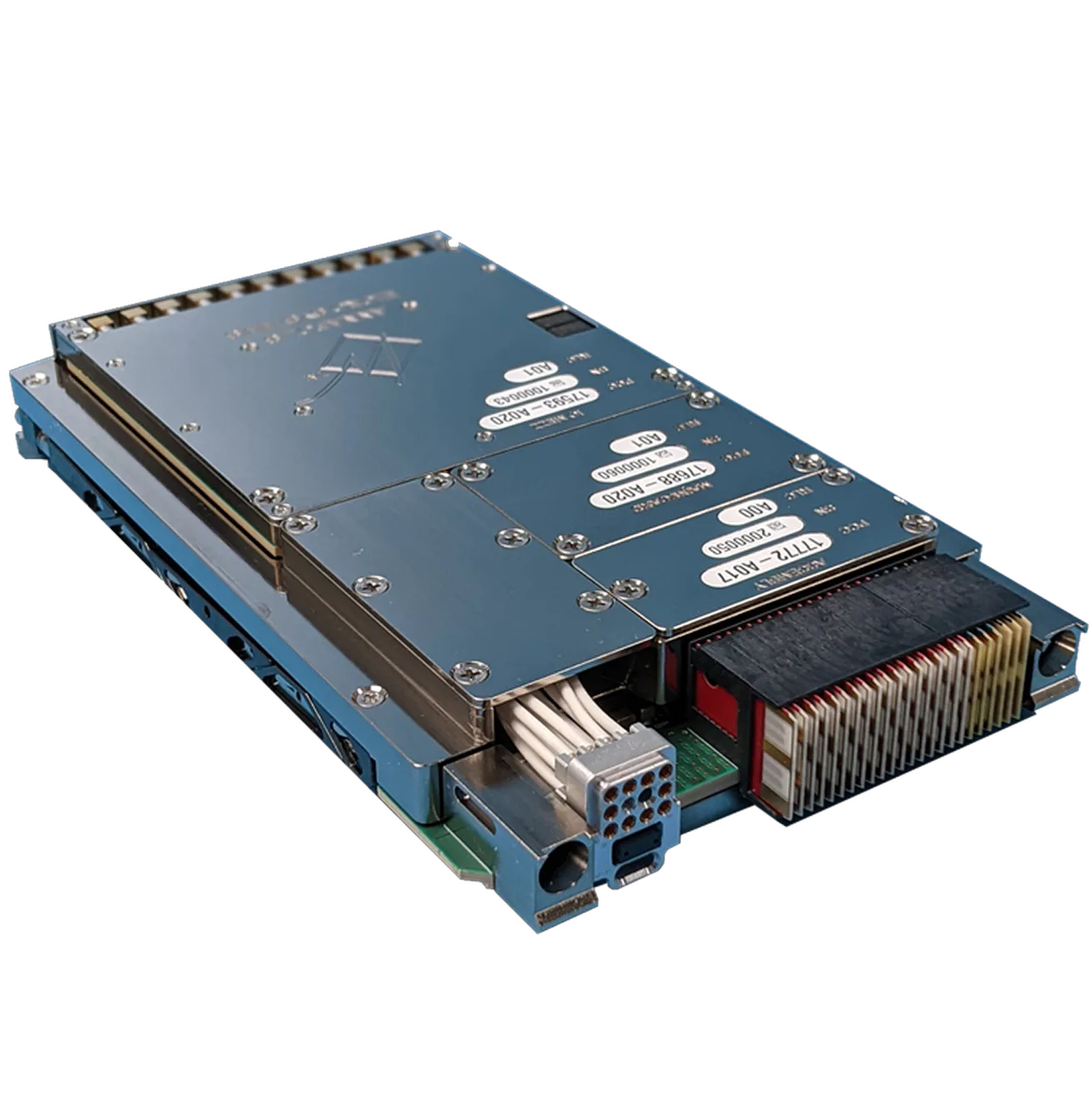

WILDSTAR 2-Channel Direct RF 3U OpenVPX Module –WS3XV1+WHDMF1
The WILDSTAR™ 2-Channel Direct RF 3U OpenVPX Module is an assembled solution that is 100GbE-enabled, SOSA-aligned, and highly rugged and thermally-controlled.
Directly digitize and process wideband signals with the high-performance 64.0/61.4 GSPS Direct RF Module. This module combines the WS3XV1 (AMD Versal FPGA) baseboard with the WHDMF1 (Jariet Electra-MA ADC/DAC) mezzanine.
Annapolis Micro Systems
WILDSTAR 2-Channel Direct RF 3U OpenVPX Module – WS3XBP-67
The WILDSTAR™ 2-Channel Direct RF 3U OpenVPX Module is an assembled solution that is 100GbE-enabled, SOSA-aligned, and highly rugged and thermally-controlled.
Directly digitize and process wideband signals with the high-performance 64.0/61.4 GSPS Direct RF Module. This module combines the WB3XBP (AMD Virtex UltraScale+ FPGA) baseboard with the WWDME1 (Jariet Electra-MA ADC/DAC) mezzanine.
D&P Electronic Systems

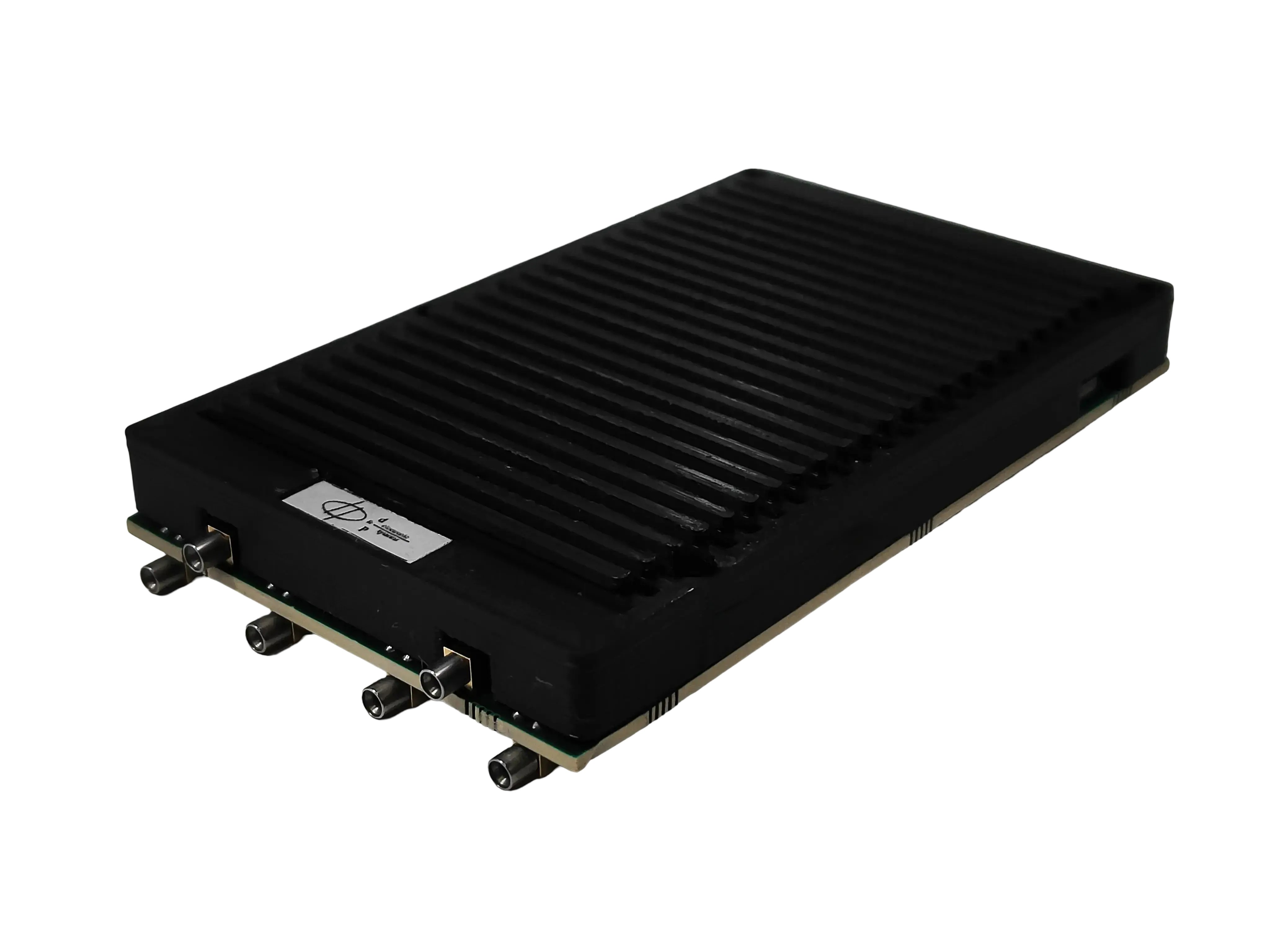

FMC JARIET – Ultra-Low Power 64 GSPS Dual Channel Mixed Signal Front End
The FMC JARIET is a high-performance FMC module compliant with the VITA 57.1 specification in a Long-Form (LF) factor. It is specifically designed for applications requiring ultra-low power consumption without compromising on extreme sampling speeds.
This module features a single Jariet Technologies Electra MX device, providing a Dual 10-bit ADC and Dual 10-bit DAC both operating at 64 GSPS. With an analog input and usable bandwidth of 32 GHz, it enables direct RF sampling and synthesis for wideband signals. The interface to the host carrier is managed via 16 lanes of JESD204B/C, reaching speeds up to 30 Gbps for maximum performance.
D&P Electronic Systems

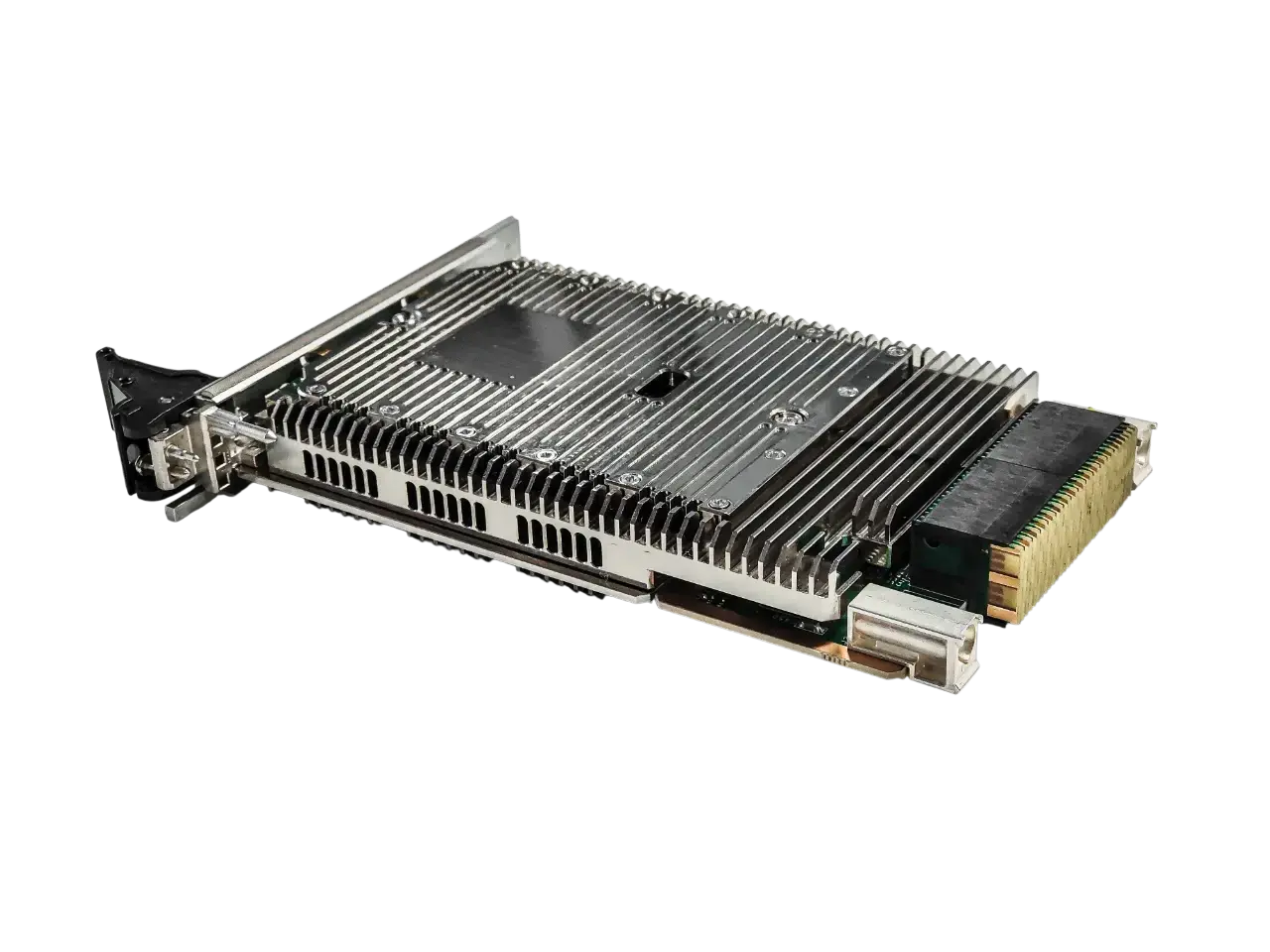

VRS-3UVPX – High-Performance 3U VPX Versal™ FPGA Processor
The VRS-3UVPX is a ruggedized 3U VPX module engineered for real-time, low-latency embedded processing in the most demanding environments. It serves as a high-performance adaptive acceleration platform, integrating the AMD Versal™ Adaptive SoC (XCVC1502) to implement high-throughput signal and data processing pipelines.
This module features advanced backplane connectivity, including PCIe Gen4 x8 and multi-rate Ethernet up to 100GbE, supporting highly scalable VPX architectures. Designed for versatility, it is an ideal engine for applications such as Digital Beamforming, Edge AI/ML inference, and Network Acceleration.
Our Solution
- Electra-MA: 2T2R, 100MHz to 36GHz
- Electra-MK : 2T2R, 100MHz to 22GHz
- Electra-MX : 2T2R, 100MHz to 12GHz
- Electra-QA : 4T4R, 100MHz to 36GHz
- Electra-QK : 4T4R, 100MHz to 22GHz
- Electra-QX : 4T4R, 100MHz to 12GHz
